Chargie’s approach to battery protection is grounded in peer-reviewed research and data from leading institutions. This page summarizes the science behind our technology and links to the original sources.
Key Takeaways
- Charge to 80% instead of 100% → 2x more charge cycles (Battery University)
- Keep below 30°C → above this, degradation accelerates exponentially (BU-808)
- Avoid full overnight charging → 20% capacity loss per year at 100% SoC vs. 4% at 40% SoC
- EV industry validates it → Tesla, BMW, Rivian all limit daily charging to 80%
- 62 million tonnes of e-waste generated globally in 2022 (UNITAR/ITU)
Charge Level and Battery Lifespan
The single most impactful factor in lithium-ion battery longevity is the state of charge (SoC) at which the battery is maintained. Higher charge levels mean higher internal voltage, which accelerates chemical degradation of the electrode materials.
According to Battery University (BU-808), reducing the peak charge voltage by just 0.10V per cell can double the number of charge cycles:
| Charge Voltage | Approx. SoC | Discharge Cycles |
|---|---|---|
| 4.20V (full charge) | 100% | 300–500 |
| 4.10V | ~85% | 600–1,000 |
| 4.00V | ~73% | 1,200–2,000 |
| 3.92V | ~65% | 2,400–4,000 |
Source: Battery University, “How to Prolong Lithium-based Batteries” — Table 4, NMC/LiCoO₂ cells.
Cycle Life by Maximum Charge Level
Data: Battery University BU-808, Table 4 — NMC/LiCoO₂ cells
This data shows that charging to ~80% instead of 100% can roughly double your battery’s cycle life. Charging to ~65% can extend it by 4–8x. This is the core principle behind Chargie’s charge limiting technology.
Depth of Discharge vs. Cycle Life
Besides the maximum charge level, the depth of discharge (DoD) — how much of the battery capacity is used per cycle — also matters significantly:
| Depth of Discharge | Cycles to 70% Capacity | Effective Usage |
|---|---|---|
| 100% (0→100%) | ~300 cycles | 300 full charges |
| 50% (25→75%) | ~1,200 cycles | 600 full-charge equivalents |
| 25% (50→75%) | ~2,500 cycles | 625 full-charge equivalents |
| 10% | ~6,000 cycles | 600 full-charge equivalents |
Source: Battery University BU-808, Table 2 — NMC cells, discharge cycles to 70% capacity retention.
This is why Chargie’s hysteresis charging pattern — letting the battery drop a few percent before resuming charge — is so effective. Instead of holding at a fixed voltage (which stresses the cell), Chargie uses shallow cycles within a safe voltage window.
Temperature and Battery Degradation
Heat is the second major factor in battery aging. Battery University states that “a battery dwelling above 30°C (86°F) is considered elevated temperature” and that degradation accelerates significantly with heat.

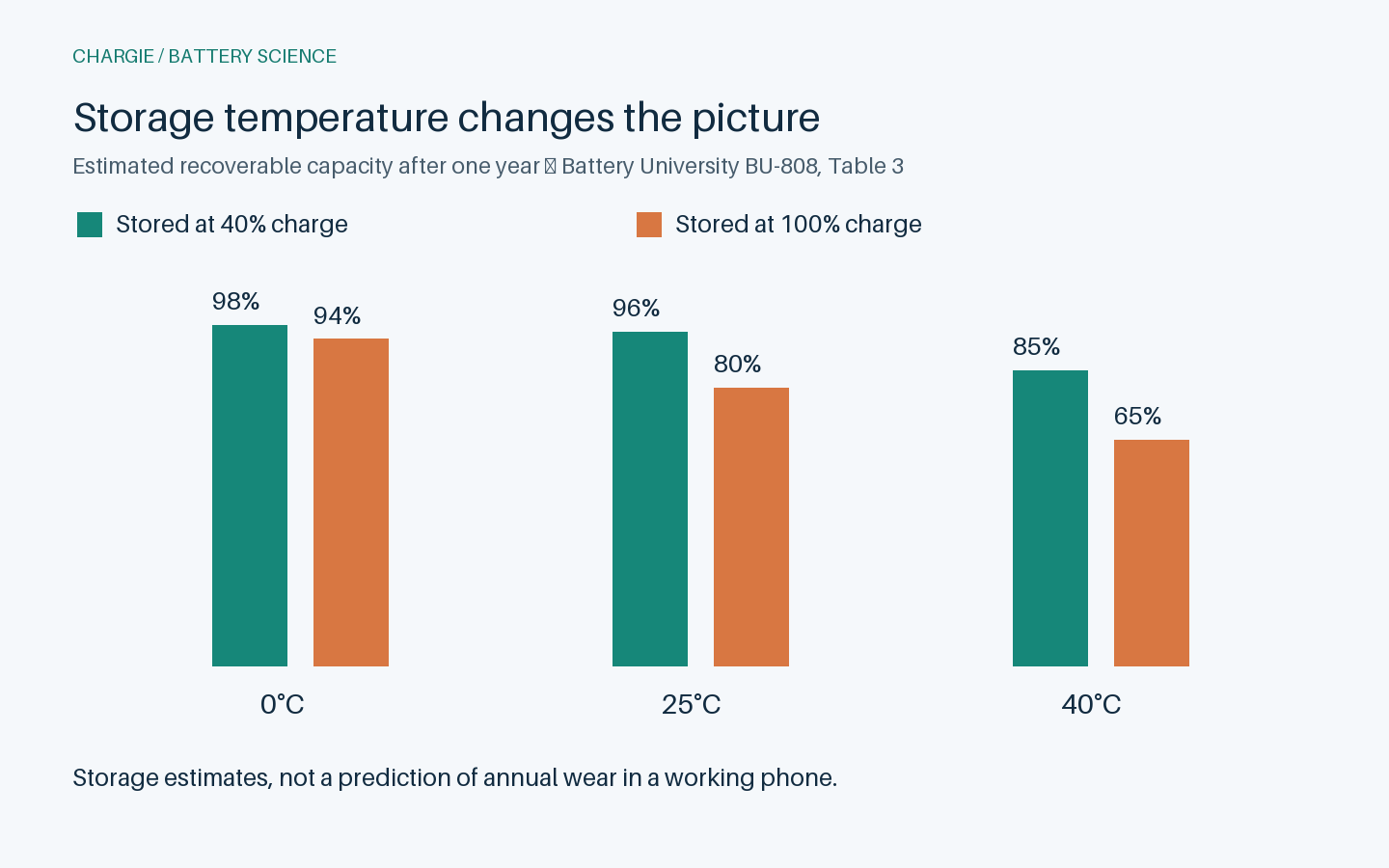

Calendar aging data from BU-808 Table 3 shows the combined effect of temperature and charge level:
| Temperature | Stored at 40% Charge | Stored at 100% Charge |
|---|---|---|
| 25°C (77°F) | 96% capacity after 1 year | 80% capacity after 1 year |
| 40°C (104°F) | 85% capacity after 1 year | 65% capacity after 1 year |
| 60°C (140°F) | 75% capacity after 1 year | 60% capacity after 3 months |
Source: Battery University, BU-808 — Table 3, estimated recoverable capacity when storing Li-ion for one year.
⚠️ The 10°C Rule
A widely cited rule in battery science: every 10°C increase in sustained operating temperature roughly doubles the rate of chemical degradation. This follows the Arrhenius equation for reaction kinetics.
Sources: Battery University BU-808 Table 3; Frontiers in Energy Research (2022); Sandia National Laboratories
The takeaway: a phone left overnight at 100% in a warm room (25°C) loses about 20% capacity per year. At 40°C — common in cars during summer — that jumps to 35%. Chargie’s overtemperature protection feature pauses charging when the phone exceeds your chosen temperature threshold.
A widely cited rule of thumb in battery science holds that every 10°C increase in sustained temperature roughly doubles the rate of chemical degradation, consistent with Arrhenius kinetics. This is supported by research from Frontiers in Energy Research (2022) and NREL temperature-dependent degradation studies.
Electric Vehicles Prove the Approach
The automotive industry has adopted charge limiting as standard practice. Tesla recommends charging to 80% for daily use and defaults Supercharger sessions to stop at 80%. The 2023 Tesla Impact Report shows Model S/X batteries retain approximately 88% capacity after 200,000 miles — projecting to 300,000–500,000 mile battery lifespans.
The U.S. Department of Energy’s Advanced Vehicle Testing Activity (AVTA) at Idaho National Laboratory has collected extensive real-world data confirming that controlled charging significantly extends EV battery life.
Chargie applies the same principle to phones and laptops: limit the charge level, reduce voltage stress, and the battery lasts dramatically longer.
Environmental Impact
According to the Global E-waste Monitor 2024 (published by UNITAR and the International Telecommunication Union), the world generated 62 million tonnes of e-waste in 2022 — up 82% from 2010. Only 22.3% was formally collected and recycled.
Manufacturing a single smartphone produces 55–85 kg of CO₂ emissions, with roughly 80% coming from production rather than use. For laptops, the figure is even higher at 300–400 kg CO₂. Sources:
- Apple Product Environmental Reports — iPhone 16 Pro Max: 74 kg CO₂e lifecycle
- Deloitte 2022 TMT Predictions — average smartphone: ~85 kg CO₂ in first year
- Circular Computing — average laptop: 331–422 kg CO₂ lifecycle
By extending a device’s useful life by even one year, Chargie helps avoid the environmental cost of manufacturing a replacement — saving both raw materials and carbon emissions.
Battery Swelling and Safety
Prolonged exposure to high temperatures and sustained high state of charge can cause gas generation inside lithium-ion cells, leading to physical swelling. Research published in the Journal of Energy Storage (2024) documents the relationship between aging conditions and swelling behavior.
The U.S. Department of Energy (DOE/OSTI) has published studies on overcharge-to-thermal-runaway progression in lithium-ion batteries, confirming that sustained overcharging combined with elevated temperatures creates compounding safety risks.
Chargie mitigates this by preventing the battery from dwelling at full charge and by cutting power when temperature thresholds are exceeded — addressing both root causes of swelling.
How Chargie Applies This Science
Chargie translates these research findings into practical, automatic battery protection:
Set any limit from 20–100%. Based on BU-808 data showing 2–4x cycle life improvement at lower charge levels.
Custom temperature threshold. Based on the 10°C doubling rule and BU-808 elevated temperature data.
Shallow discharge cycles within safe voltage ranges. Based on DoD vs. cycle life research.

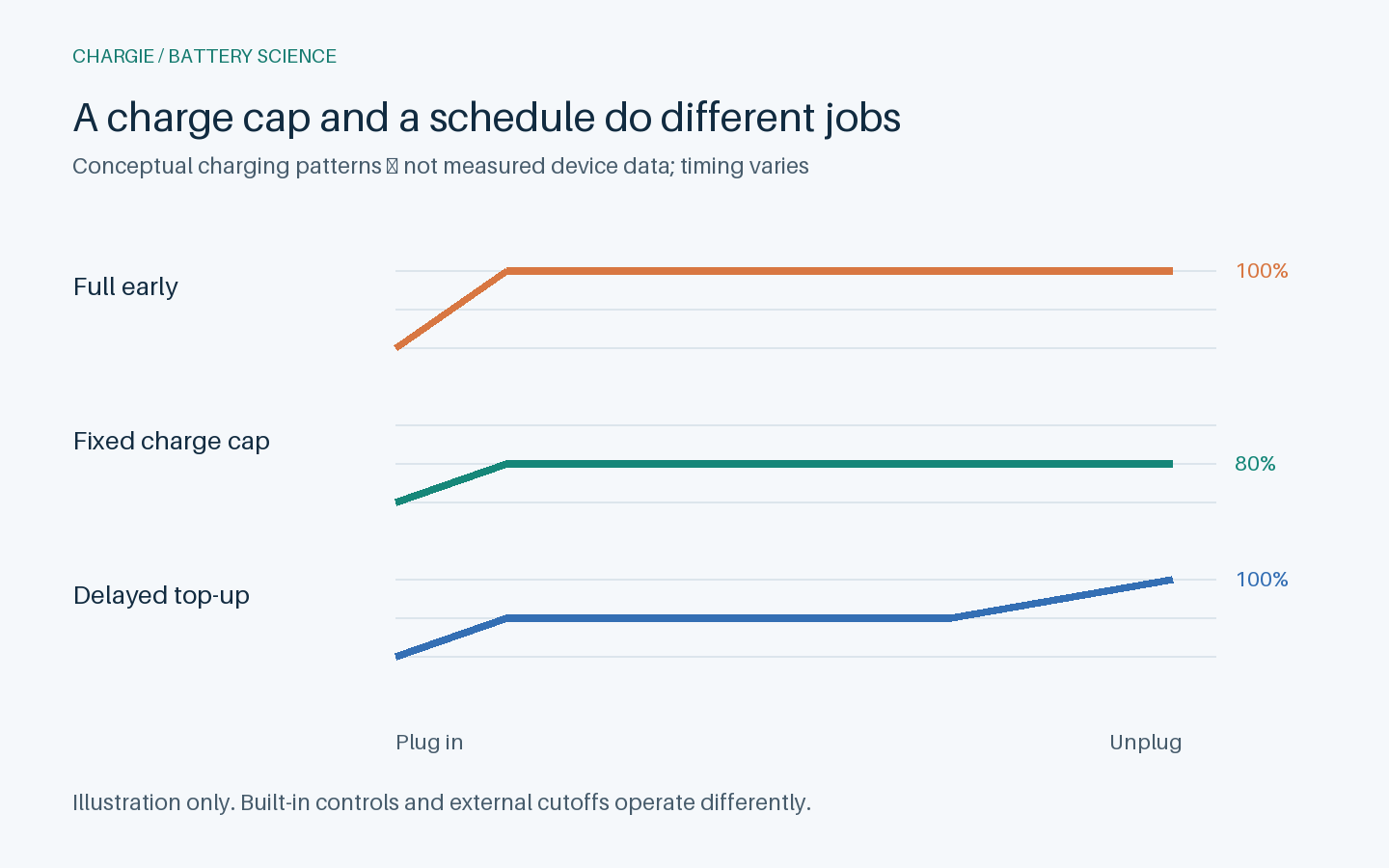

Keep at 50–70% overnight, top up before waking. Minimizes calendar aging from high SoC exposure.
Industry Adoption of Charge Limiting
Major device manufacturers have recognized the benefits of charge limiting:
- Apple — Introduced “Optimized Battery Charging” in iOS 13, which learns your routine and delays charging past 80% until needed
- Samsung — Added “Protect Battery” mode that caps charge at 85%
- Google — Pixel devices include “Adaptive Charging” to slow overnight charging
- Microsoft — Surface devices include a “Battery Limit” mode capping at 50% (Microsoft Support)
- Tesla — Recommends 80% daily charge limit; Superchargers default to 80%
Chargie provides this same protection as a universal hardware solution — working across all devices, all operating systems, and all charger types, with more precise control than any built-in software feature.
Full Reference List
- Battery University — How to Prolong Lithium-based Batteries (BU-808)
- Battery University — What Causes Li-ion to Die? (BU-808b)
- NREL — Identifying the Sources of Battery Capacity Loss (2022)
- NREL — Temperature-Dependent Battery Degradation (2018)
- Frontiers in Energy Research — Impact of Temperature on Li-ion Battery Aging (2022)
- NASA — Guidelines on Lithium-ion Battery Use in Space Applications
- DOE/Idaho National Laboratory — AVTA Battery Testing Data
- Tesla 2023 Impact Report
- Global E-waste Monitor 2024 (UNITAR/ITU)
- Journal of Energy Storage — Safety of Swelled Li-ion Batteries (2024)
- DOE/OSTI — Overcharge-to-Thermal-Runaway Study
- Apple Product Environmental Reports
- Deloitte — Environmental Impact of Smartphones (2022)
Chargie applies proven battery science at the hardware level — protecting your devices automatically, every charge.
