Hardware
Product name

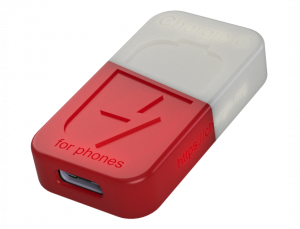

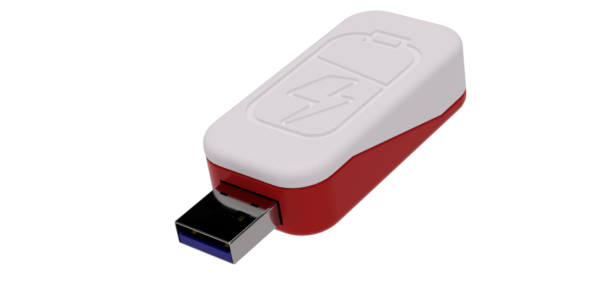

Chargie A GE (Gold Edition)
Maximum voltage
16V
Maximum current
10A peak, 6A continuous
Physical Connector Type
USB-A male – input
USB-A female – output
USB-C compatibility
yes, with external adapter
Connector mating cycle number
1000
Switching technology
MOSFET transistor
Switching speed
1s
Fast charging compatibility
QualComm QC3, QC4
PD Charging compatible
no, 5V/2A chargers recommended
Data transfer
yes, transparent
Wireless charger compatibility
yes
Control connection type
Bluetooth 4.0 (BLE)
Bluetooth range
1-10m, direct LoS (line of sight)
Hardware (app-less) charge limiting
yes
Configurable LED indicators
yes
Case material
– 3D-printed PLA, 250 microns layer height
– upgradable to high quality UV resin-printed case, 50 microns layer height
Colors
Red, Green, Blue, Black, Yellow
Weight
10g
Size
50.5 x 22.7 x 13.7mm
Software
Compatibility
Android 6.0 and above, iOS 13 and above.
Android Auto compatibility
yes, on Android phones.
App updating
Over-the-air (OTA) updates via Google Play Store / Apple App Store.
Automatic reconnection
yes
Automatic device search
yes
Battery over-temperature protection
yes
Manual power switching mode
yes
Charging hysteresis
yes
